Building a National Match AR

The barrel configuration purchased from JP Enterprises came with an A2 style front sight adjustable gas block. The author then installed a match front sight post from Brownells. The special gas tube from the free float handguard has also been installed.

The barrel configuration purchased from JP Enterprises came with an A2 style front sight adjustable gas block. The author then installed a match front sight post from Brownells. The special gas tube from the free float handguard has also been installed.

Barrel

The heart of a rifle is its barrel. Having had great experience with the barrel kit I purchased for a three-gun rifle, I again tried a barrel kit from JP Enterprises. I ordered one of their 20-inch barrels, modified. As standard, it takes a .936” gas block over a .875” barrel. I had them turn the barrel down to take a .750” gas block, thus the same required contour past the handguards as a standard M-16/AR-15 20-inch barrel. To this barrel was attached one of their A2 front sight posts, called a JPGS-2FS. It clamps on, rather than pinning, similarly to the windage adjustable gas blocks the larger companies use, has an adjustable gas system, and closely duplicates the standard front sight tower. This set screw allows the shooter to tune the gas system to any particular ammo, yet the gas system remains fully functional, as rules require.

The potential downside is the resulting lightness of the barrel, which kind of bucks the current in a sport where heavy contoured (behind the gas block) barrels are the norm. However, upon completion of this project I found that the rifle’s balance was absolutely perfect in my eyes and was very easy to hold for extended periods gazing through the sights.

The front sight post was also a match type sight procured from Brownells, thinner in cross section than the standard front sight post. An Armalite National Match rear sight from Brownells replaced the standard sight on the carry handle and was the most annoying thing to install. Don’t lose the ball bearings, and be sure to use your third hand, since you will need it.

To spread things around a bit, I ordered the removable carry handle from Del-Ton. Why? It was a quality part (there are a lot of crappy carry handles out there) for a very reasonable price, and I have always liked Del-Ton’s customer service, prices, and item selection, which make it an obvious place to find things I need.

I was forced to make a modification to the handguard and front sight/gas block, which is befitting a gunsmith building a rifle. I milled off a radius from the top corner of the swivel loop on the handguard, and ground off a small amount from the back of the rear gas block clamp so they could fit together on the barrel without interfering with one another. The accompanying image shows where the two parts were affected.

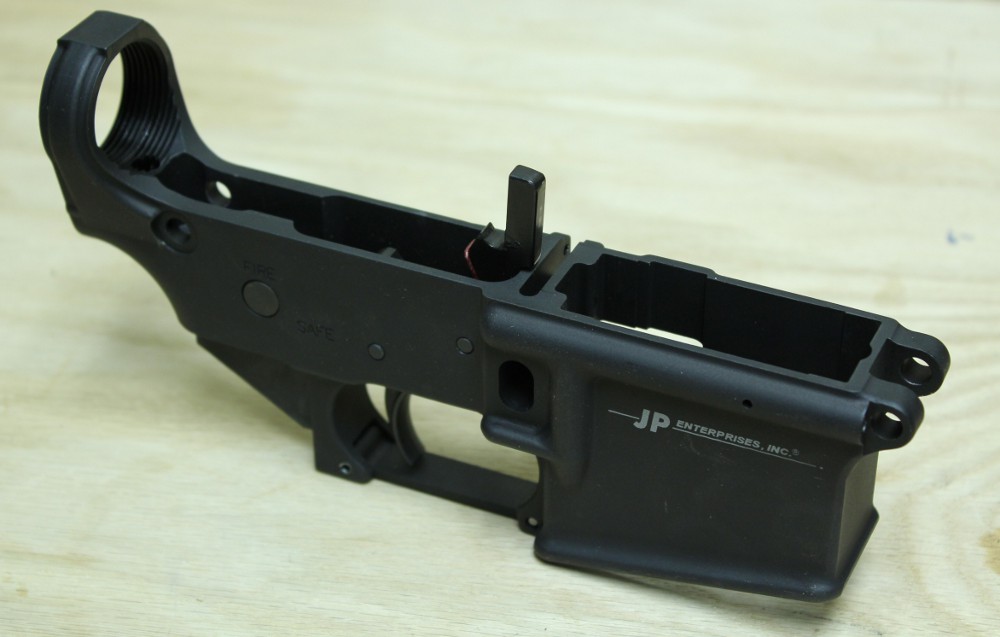

JP's Lower with Trigger, the smart man's module. Set up to your desired trigger weight range, it bears a cost similar to many modular trigger sets, yet provides an entire lower receiver to boot.

JP’s Lower with Trigger, the smart man’s module. Set up to your desired trigger weight range, it bears a cost similar to many modular trigger sets, yet provides an entire lower receiver to boot.

Lower

Real quickly, when I was ordering the barrel kit, JP’s “modular” trigger caught my eye. Not a modular trigger at all in the traditional sense, it is simply JP’s standard single-stage match trigger installed in a stripped lower receiver, for $350, and correctly called a “Lower With Trigger.” Frankly, I haven’t met a modular trigger that I really liked; they all have their little idiosyncrasies and while good, can’t ever seem to quite stand up to a dedicated non-modular type standard match trigger.

So, I thought that $350 was quite a decent deal for a stripped lower with a match trigger kit, set up for the 4.5 pound minimum pull weight. I removed the anti-walk pins to replace them with standard trigger and hammer pins. Onto this lower receiver went a lower parts kit that I had sitting around and the stock and pistol grip from Brownells. I also dug up an old standard aluminum 20-round magazine (that I know still works well) that probably went to Vietnam and back to feed the rifle. Standard 30 round mags are okay too, but shooters often monopod on them during prone strings of fire.

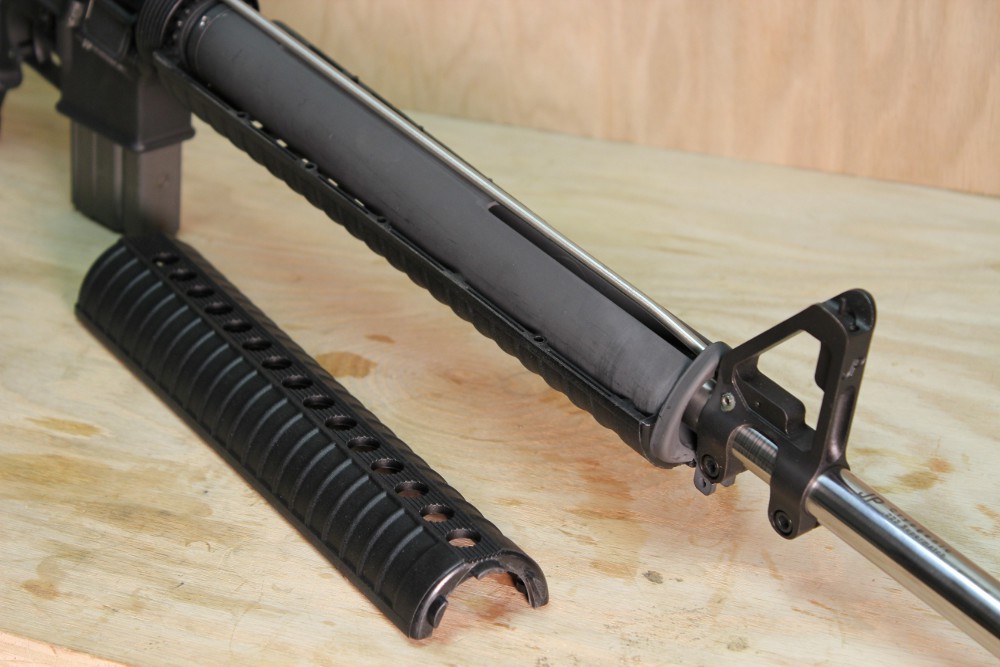

While using the same handguard plastic halves, this kind of rifle retains them in a steel tube assembly that just looks like a standard handguard, without touching the barrel, removing stresses, and making the barrel more accurate. Incidentally, the bend in the gas tube is also moved forward to better accommodate the steel tube.

While using the same handguard plastic halves, this kind of rifle retains them in a steel tube assembly that just looks like a standard handguard, without touching the barrel, removing stresses, and making the barrel more accurate. Incidentally, the bend in the gas tube is also moved forward to better accommodate the steel tube.



Testing

While I need to get outside more and practice, it was a non-problem for me to take a quick trip to the indoor 50-yard range to break this rifle in. The best groups I got were with American Eagle 55-grain FMJ ammo, both under ½ an inch in this setting. Theoretically, on a calm day at 100 yards I should get under an inch, and for my first CMP rifle, I’m totally satisfied with that result. Felt recoil was ridiculously light, due to the adjustable gas system and the low-mass bolt carrier that I also purchased from JP. Most felt recoil in an AR is from the mass of the buffer and carrier group hitting the back of the stock. By lightening that load somewhat, and reducing the tuning, the gas needed to operate the rifle with the adjustable gas block, most of that felt recoil can be eliminated. Most rifles are over gassed for reliability, but adjustable gas blocks allow you to tap off only what you need, not what the manufacturer thinks you may someday need on the surface of Mars. This should allow me to get the sights back on target faster during the rapid-fire stages of the matches, hopefully giving a slight boost to performance.

Conclusion

My goal was to build a gun for the National Matches and I did so. Yes it cost me more in the end than buying one off the shelf, but I got a rifle that was mine, not someone else’s. And since the CMP rules allow detachable carry handles, I can take my carry handle off and use the rifle with an optic for some other task, such as hunting, or another shooting sport, as I see fit, and then simply replace the carry handle for my next CMP match. I am a believer in versatility and this rifle meets that description.

By spending a little extra on premium parts, you can still make it out the door under $1500 (less than your average piston operated AR carbine) and you should have a demonstrably better rifle, personalized, than a mass-produced off-the-shelf version of the same thing.

Since people are probably getting sick of me writing about ARs (even though that market is hot) we will next be moving back into some traditional detailed gunsmithing for the next few months. Till then, find a sport and shoot it.
